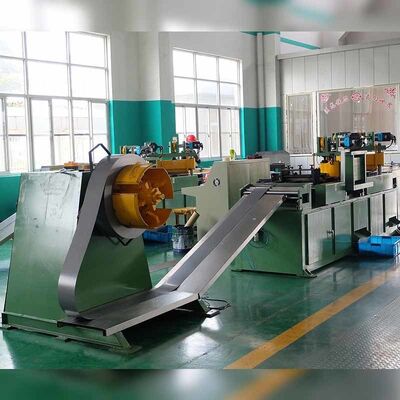

HJX400-LLB Step Lap Transformer Core Cutting Machine with 0.02mm Cutting Burring and 120m/min Feeding Speed

The HJX400-LLB step lap transformer core cutting machine is a professional and high-precision processing equipment dedicated to silicon steel sheet cutting. It is specially designed for cutting silicon steel strips to fabricate core legs and yokes of transformer cores.

Equipped with a mature PLC control system and HMI human-machine interface, the machine features intuitive operation and intelligent control. It supports step lap cutting technology, enabling precise processing of step-lapped core legs and yokes. With stable performance and simple operation, it meets the high-precision production requirements of transformer cores.

• Hydraulic Decoiler
• Inclined Feeding Device
• Punching Unit
• Shearing Unit
• Outlet Platform
• Width Adjusting System
• Pneumatic System
• Electrical Control System

The following are the standard technical specifications of the HJX400-LLB transformer core cutting machine. Customized production is available to meet diverse customer processing requirements.

Fig 1: Cut to length line HJX400-LLB's side view

Fig 2: Cut to length line HJX400-LLB's coil dereeler
